Building carbon wheels since 2006. Hand-finished in the Netherlands with machine precision. Over 100,000 wheels built to one consistent standard.
F4R FCC
CHOOSE YOUR CONFIGURATION
WHEEL HEIGHT: 45 MM
Perfect for: Cyclists dedicated to rim brakes who are looking for a lightweight, aerodynamic upgrade for high-performance rides.
HUB: FFWD
BODY TYPE: SHIMANO
IN STOCK
WE SHIP WHEELS FOR FREE & IN 1 DAY ON WEEKDAYS, RIDE FAST!
At FFWD you can shop safely & securely!
Free worldwide shipping on wheels
We ship everywhere, no matter where you live. Trackable by UPS!
100 days free trial
For all wheelsets bought directly from our webshop, we offer a 100 days free trial and return policy with full refund.
3 years warranty
FFWD warrants its products for a period of two years after the date of purchase. An additional year of warranty (three year total) is rewarded to all FFWD riders who register their wheels.
Crash replacement
We offer a unique service for those who crashed their wheels. Contact our service department for the possibilities!
Key specifications
| Weight | 1610 g |
|---|---|
| Rim height | 45 mm |
| Internal width | 19 mm |
| Tire range | 23 mm - 37 mm |
| Spoke type | Straight pull |
| Hub type | FFWD |
| Body system | Ratchet system |
| Bearings | Steel |
Allround performance rim brake wheels
For those who remain faithful to rim brakes, the F4R FCC is the perfect set of wheels for every day performance rides. Besides these full carbon clincher wheels are as light as a feather, the aerodynamic rim profile also ensures they cut through the wind like a knife.
Modern tubeless ready full carbon DARC rims
The 45mm high carbon rims of the F4R FCC are designed based on the DARC technology. DARC stands for “Double Arc” which refers to the unique wavy rim profile which results in improved aerodynamics. The internal width of the rim is optimized for mounting tyres up to 37mm. By default, the F4R FCC rims are tubeless ready and the wheels are always supplied with tubeless tape mounted and tubeless valves in the box.
Full carbon wheels for rim brakes
Anyone who thinks bicycles with rim brakes are past away, and production of wheels made for bicycles with rim brakes stoped is wrong! Althought the advance of disc brake bicycles, there is still a higher number of bicycles ridden with rim brakes. Reason enough for FFWD to stay the modern F4R FCC wheels for bicycles with rim brakes available in the collection.
Rock solid FFWD hubs
High quality hubs with a minimum of rolling resistance, low maintenance frequency and optimal durability. The F4R FCC is equipped with our own brand FFWD hub, which provide you stable and reliable quality at the best possible conditions. These FFWD hubs have a standard quick-release mount.
- F4R FCC wheelset (front and rear)
- FFWD branded wheel bag
- Pre-installed tubeless tape
- Tubeless valves
- SwissStop Black Prince brake pads
- FFWD Quick-release set
Compare F4R FCC to other wheelsets
F4R FCC
€1.299,00
|
TYRO RIM BRAKE
€1.099,00
|
F6R FCC
€1.399,00
|
TYRO TUBULAR
€1.099,00
|
Add a wheel to compare
| |
|---|---|---|---|---|---|
| Weight | 1610 g | 1640 g | 1660 g | 1510 g | – |
| Rim height | 45 mm | 45 mm | 60 mm | 45 mm | – |
| Internal width | 19 mm | 21 mm | 19 mm | – | – |
| Tire range | 23 mm - 37 mm | 23 mm - 44 mm | 23 mm - 37 mm | 23 mm - 33 mm | – |
| Spoke type | Straight pull | Straight pull | Straight pull | Straight pull | – |
| Hub type | FFWD | FFWD RATCHET RIM BRAKE | FFWD | FFWD | – |
| Body system | Ratchet system | 36T Ratchet System | Ratchet system | Ratchet system | – |
| Bearings | Steel | Steel | Steel | Steel | – |
| TYRO RIM BRAKE | F6R FCC | TYRO TUBULAR |
Why FFWD
100.000+ cyclists worldwide ride faster with FFWD
02
Shipped fast, with care
Designed, built and shipped under one roof. Daily worldwide shipping, carefully packed and ready to ride. Short lines, full control.
03
Built to last
Designed for durability. Built for real world riding. Checked before shipping and supported by warranty and crash replacement.
Specifications
General
| Weight | 1610 g |
|---|---|
| Max. rider weight | 100 kg |
| Brakes | Rim brake |
| Aero shape | DARC |
| Tubeless ready | Yes |
| Innertube compatible | Yes |
| Tubular | No |
Rim
| Rim type | Full Carbon Clincher |
|---|---|
| Rim height | 45 mm |
| Internal width | 19 mm |
| External width | 27 mm |
| Tire range | 23 mm - 37 mm |
| Max. tire pressure | 8.3 bar / 120.4 psi |
Spokes
| Spoke type | Straight pull |
|---|---|
| Spoke count | 24/20 |
Nipples
| Nipples type | Brass 15mm prolock |
|---|
Hub
| Hub type | FFWD |
|---|---|
| Body system | Ratchet system |
| Bearings | Steel |
Performance
What's in the box
What riders say about F4R FCC
Funsiono pero falló a los 3 años

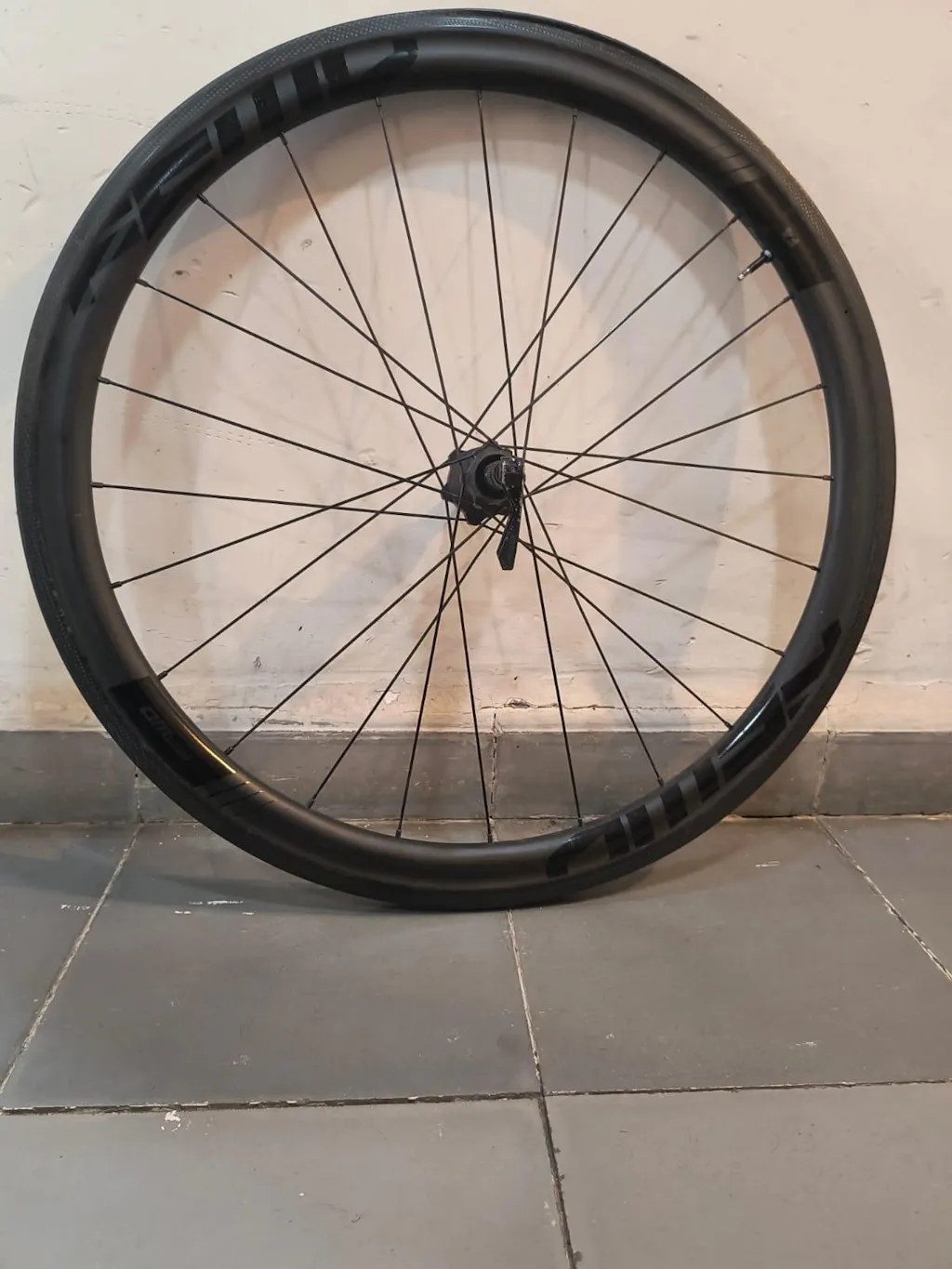

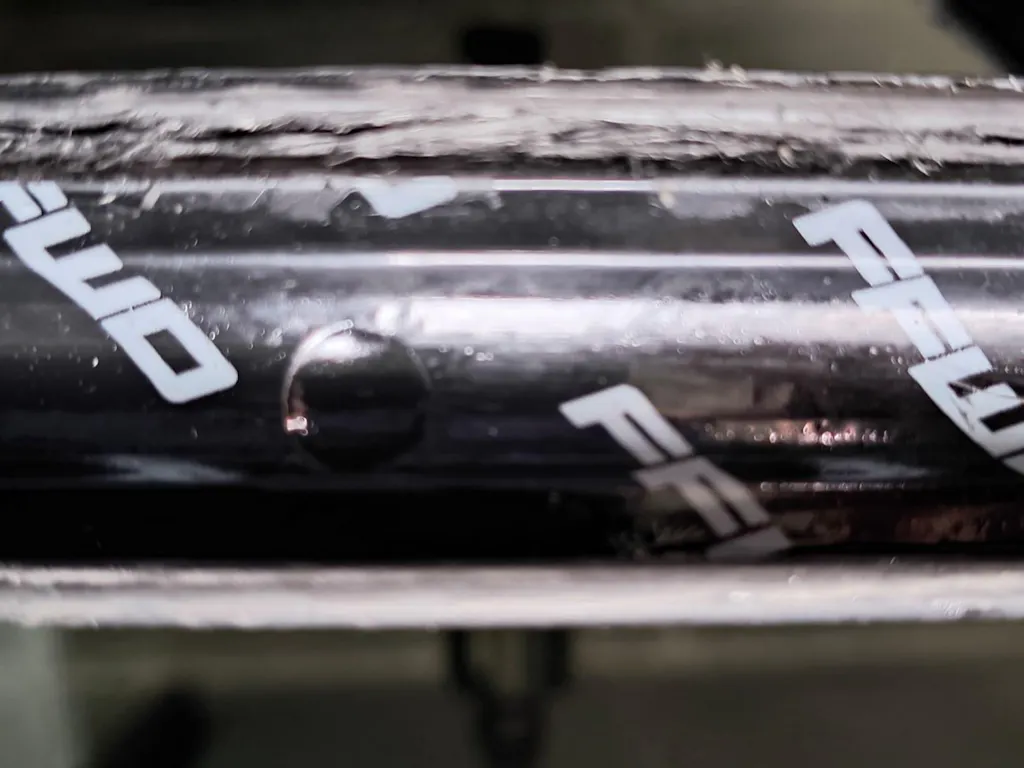

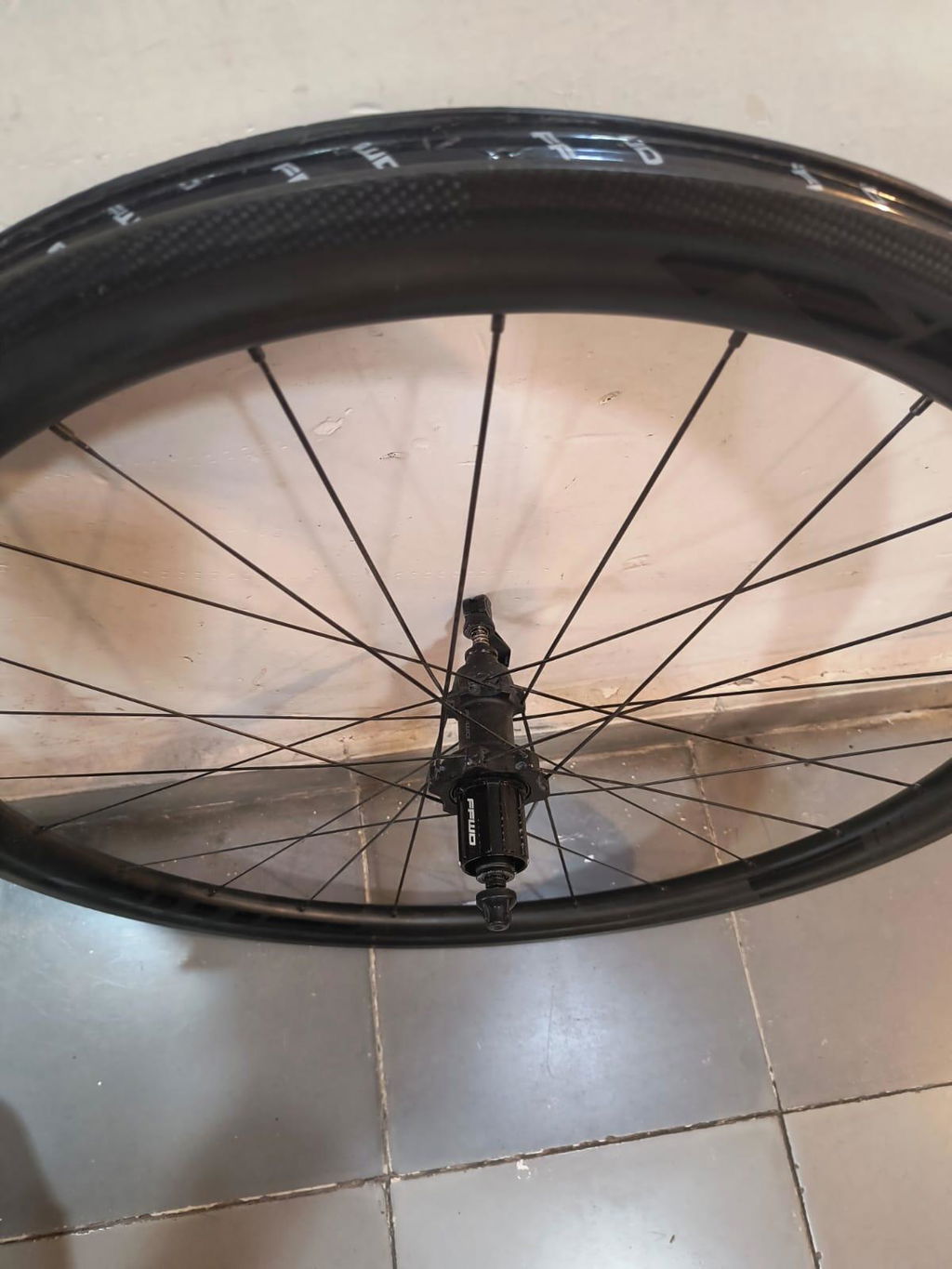

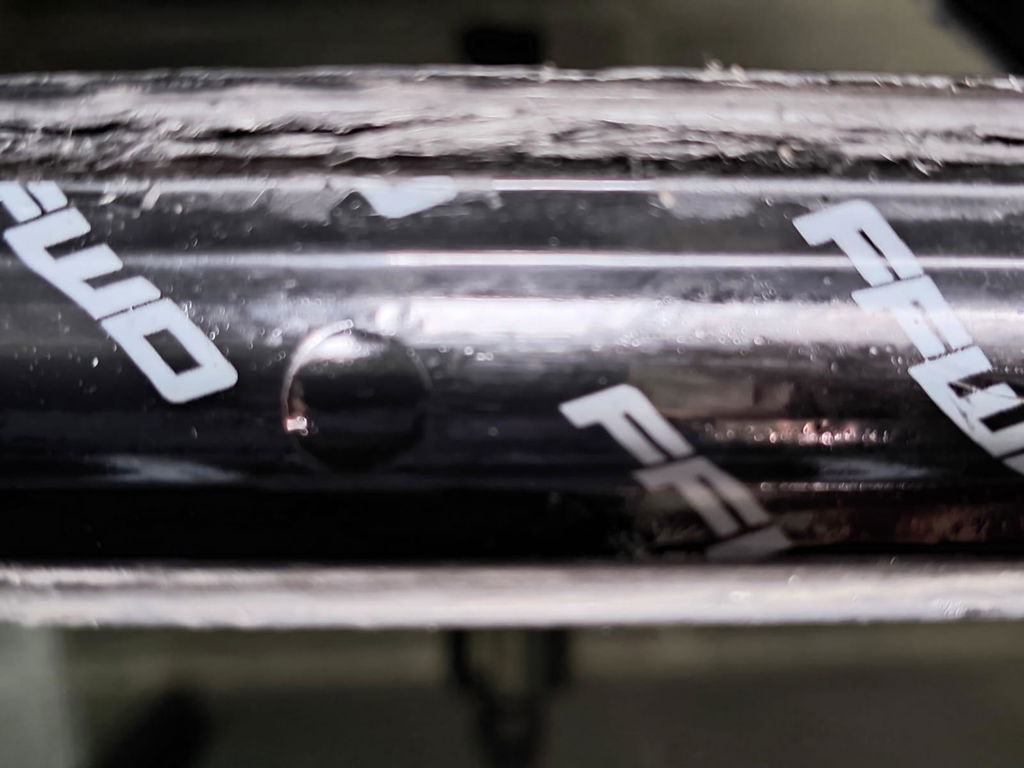

Funcionan bien las ruedas, muy estables, aunque el rear, rueda trasera es muy ruidosa. le faltaría algo de velocidad. Después de tres años se abrió sola el gancho hook de la orilla de la pista de frenado break. Se ve la fibra de carbón abierta sola sin ninguna caída o golpe. Cuando yo estaba bajando en un descenso comenzó a sonar raro la rueda trasera y se empezó a atascar. cuando llegué abajo y paré revisé la rueda y noté que estaba algo abultado la orilla del hook donde perfila la llanta y la fibra de carbón abierta.
Confidence inspiring.
I have held back on my review, until I had a few hundred Km under the wheels. First impressions, they felt rock solid, no flex or shake even over rough roads. Excelleration is on a par with my Mavics, that got destroyed in a crash. The FFWD hubs have a decent pickup, a bit noisy, not as as bad as Hunt though, a small point. The main reason I bought new wheels was, the atrocious breaking performance of my Yoeleo Carbon wheels, thankfully, these are far superior, being progressive and linear in their feel. Top job FFWD.
Perfect carbon wheelset for beginner
The F4R FCC wheelset was my first carbon wheelset ever (amazing upgrade back in 2020) and I still love them a lot!
