01
Made in Holland
Building carbon wheels since 2006. Hand-finished in the Netherlands with machine precision. Over 100,000 wheels built to one consistent standard.
RYOT 77
CHOOSE YOUR CONFIGURATION
WHEEL HEIGHT: 77 MM
Perfect for: Riders wanting to cut through the wind and get the best of all worlds in speed, stability, and aero power.
HUB: FFWD N/GAGE
COLOR: BLACK
BODY TYPE: SHIMANO
IN STOCK
WE SHIP WHEELS FOR FREE & IN 1 DAY ON WEEKDAYS, RIDE FAST!
At FFWD you can shop safely & securely!
Free worldwide shipping on wheels
We ship everywhere, no matter where you live. Trackable by UPS!
100 days free trial
For all wheelsets bought directly from our webshop, we offer a 100 days free trial and return policy with full refund.
3 years warranty
FFWD warrants its products for a period of two years after the date of purchase. An additional year of warranty (three year total) is rewarded to all FFWD riders who register their wheels.
Crash replacement
We offer a unique service for those who crashed their wheels. Contact our service department for the possibilities!
Key specifications
| Weight | 1840 g |
|---|---|
| Rim height | 77 mm |
| Internal width | 23 mm |
| Tire range | 25 mm - 42 mm |
| Spoke type | Sapim CX-Ray & Sapim CX-Sprint |
| Hub type | FFWD N/GAGE (2:1) |
| Body system | 36T Ratchet System |
| Bearings | Cartridge; Steel |
This set has triathlon written all over it
The 77mm high rims cut through the wind yet are easy to control. Get up to speed quickly and maintain your speed to save watts.
With the high rims, you take maximum advantage of aerodynamics. Combined with high stiffness, you're converting power into speed. Constant improvements in our rim manufacturing process result in significant weight reductions. This set weighs 1770 grams in the DT240 hub configuration. Perfect for long flat or slightly hilly triathlon races.
Weight gains without sacrificing durability
While chasing weight gains we never compromise on durability. That's why you won't find miniscule bearings or aluminium nipples, but we use brass nipples instead. Our guarantee your wheels will last a long time.
Staying true to our philosophy on hooked rims for road wheels the RYOT now have a 23mm internal rim width. Perfect to fit wider tires and to choose whatever type or brand of tire you prefer.
Choose your hubs
The FFWD N/GAGE hubs are completely redesigned to shave off extra weight. Based on ratchet internals these hubs offer you the best price/quality ratio. If you’re looking for the last marginal gains you can save a bit more weight when opting for the DT240 EXP hubs.
For all our hubs and wheels we keep stock of spare parts. For example body’s, bearings and spokes. All hubs are compatible for 12 x 100mm thru-axles (front), 12 x 142mm (rear) and have a center lock disc rotor fitting.
- RYOT77 wheelset (front and rear)
- FFWD branded wheelbag
- Pre-installed tubeless tape
- Tubeless valves
- Disc rotors are not included!
Compare RYOT 77 to other wheelsets
RYOT 77
€1.599,00
CHOOSE HUB
|
RAW 77
€2.699,00
|
RYOT 55
€1.599,00
CHOOSE HUB
|
RYOT 77-55
€1.599,00
CHOOSE HUB
|
Add a wheel to compare
| |
|---|---|---|---|---|---|
| Weight | 1840 g | 1670 g | 1580 g | 1710 g | – |
| Rim height | 77 mm | 77 mm | 55 mm | 77-55 mm | – |
| Internal width | 23 mm | 23 mm | 23 mm | 23 mm | – |
| Tire range | 25 mm - 42 mm | 25 mm / 42 mm | 25 mm - 42 mm | 25 mm - 42 mm | – |
| Spoke type | Sapim CX-Ray & Sapim CX-Sprint | VONOA Carbonbladed spokes | Sapim CX-Ray & Sapim CX-Sprint | Sapim CX-Ray & Sapim CX-Sprint | – |
| Hub type | FFWD N/GAGE (2:1) | FFWD CeramicSpeed | FFWD N/GAGE (2:1) | FFWD N/GAGE (2:1) | – |
| Body system | 36T Ratchet System | 36T Ratchet System | 36T Ratchet System | 36T Ratchet system | – |
| Bearings | Cartridge; Steel | Cartridge; CeramicSpeed | Cartridge; Steel | Cartridge; Steel | – |
| RAW 77 | RYOT 55 | RYOT 77-55 |
Why FFWD
100.000+ cyclists worldwide ride faster with FFWD
02
Shipped fast, with care
Designed, built and shipped under one roof. Daily worldwide shipping, carefully packed and ready to ride. Short lines, full control.
03
Built to last
Designed for durability. Built for real world riding. Checked before shipping and supported by warranty and crash replacement.
Specifications
General
| Weight | 1770 g (DT240) & 1840 g (FFWD N/GAGE) |
|---|---|
| Max. rider weight | 120 kg |
| Brakes | Disc brake |
| Aero shape | LAW |
| Tubeless ready | Yes |
| Innertube compatible | Yes |
| Tubular | No |
Rim
| Rim type | Full Carbon Clincher |
|---|---|
| Rim height | 77 mm |
| Internal width | 23 mm |
| External width | 31 mm |
| Tire range | 25 mm - 42 mm |
| Max. tire pressure | 7.6 bar / 110 psi |
Spokes
| Spoke type | Sapim CX-Ray & Sapim CX-Sprint |
|---|---|
| Spoke style | Straightpull |
| Spoke count | 24/24 |
Nipples
| Nipples type | Brass 15mm prolock |
|---|
Hub
| Hub type | FFWD N/GAGE (2:1) |
|---|---|
| Body system | 36T Ratchet System |
| Bearings | Cartridge; Steel |
| Axle system | Front 12 x 100mm - Rear 12 x 142mm |
Performance
What's in the box
What riders say about RYOT 77
FFWD makes cyclists happy!
Great Customer Service, very helpful and quick replies via online chat on their website. Shipment of the wheelset on time, quality packaging, practical Wheelbag included. Out of the box Ryot 77 looking very high quality finish. After first test ride in about 30kmh wind the wheels handled even better than I would have expected in the crosswind sections! Great Performace, Fair Prices, Reliable Customer Service! Thank you FFWD!
RYOT 77Super service
Zeer compleet, verwachtingen overtroffen. Daarnaast een prachtig voorwiel om mijn tijdritfiets helemaal af te maken
RYOT 77Awsome service
Very helpfull service and great wheels! Would 100% recommend.
RYOT 77Perfect wheelset for my Shiv TT
I decided to go for the Ryot 77s (and the Falcon) as wheels for my new Shiv TT and after a few hundred kilometers and some race wins I have to say - right decision!!

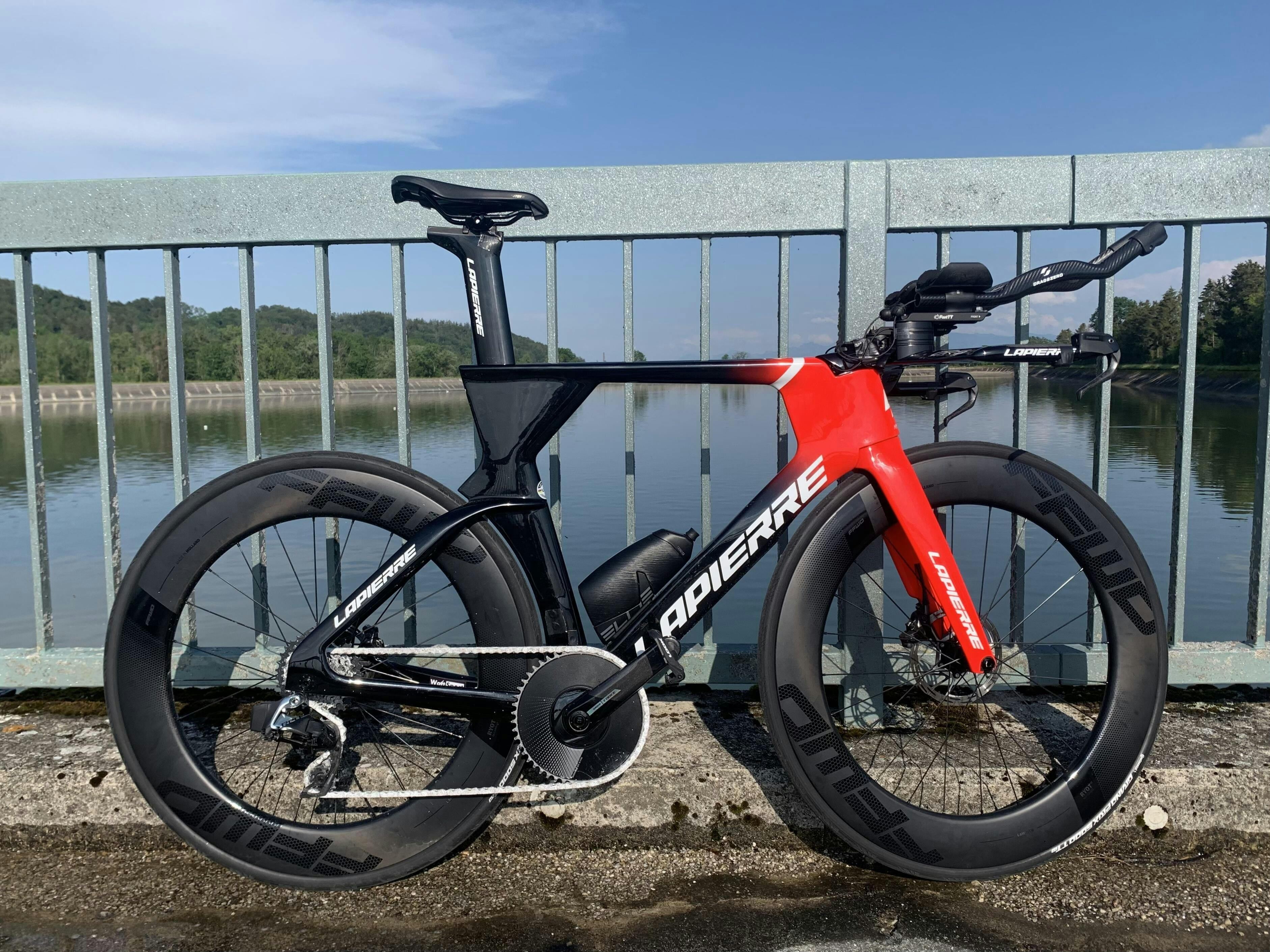

Enhanced Performance with the FFWD RYOT 77 on My La Pierre Aerostorm
The FFWD RYOT 77 wheels have been a fantastic upgrade to my La Pierre Aerostorm. The 77 mm depth offers incredible aerodynamics, and the impressive rim width contributes to their overall performance, making them ideal for time trials. Despite the deep rims, the bike remains stable, even in crosswinds. Overall, they've significantly boosted both my speed and riding enjoyment.
Aerowheels for all conditions
My go-to-setup for hilly triathlon courses
Geweldige wielset
Wij, vader en zoon rijden nu 2 jaar met deze wielset, wat een super goede wielen zijn dit! Op snelheid voel je dat de aërodynamica zijn werk doet de wielen willen alleen maar vooruit en harder. Ook de gevoeligheid voor wind waar iedereen bang voor is, is te verwaarlozen. Kortom wij willen niks anders dan 77 hoog! Gert Ruitenberg Eigenaar Ruitenberg Exclusive Bikes
Een absolute aanrader voor wie lang en hard wil rijden
Ik rij nu ruim twee jaar op deze mooie wielen, gekocht voor de triathlons, maar eigenlijk rij ik er nu altijd mee. Het eerste wat opvalt is hoe goed de wielen 'bollen'. Ik had niet gedacht dat het verschil waarneembaar zou zijn met een gemiddeld 40-50mm hoge velg, maar toch wel. Het iets hoge gewicht zal ook een bijdrage leveren aan de snelheid door de grotere massatraagheid. Dit is overigens de reden waarom ik in de Ardennen of Alpen wel een lichtere set wielen steek. Ondanks dat de wielen zeer stabiel zijn en je verrassend weinig last van de wind hebt, vind ik het in de bergen bij afdalen niet heel veilig als er meer wind staat. Je zou nog kunnen kiezen om alleen voor een wiel met lagere velg te steken in de bergen. Voor alle dagelijkse ritten en wedstrijden is deze set een absolute aanrader voor wie lang en hard wil rijden. Bonus is dat de wielen een prachtig geluid maken!
RYOT 77
